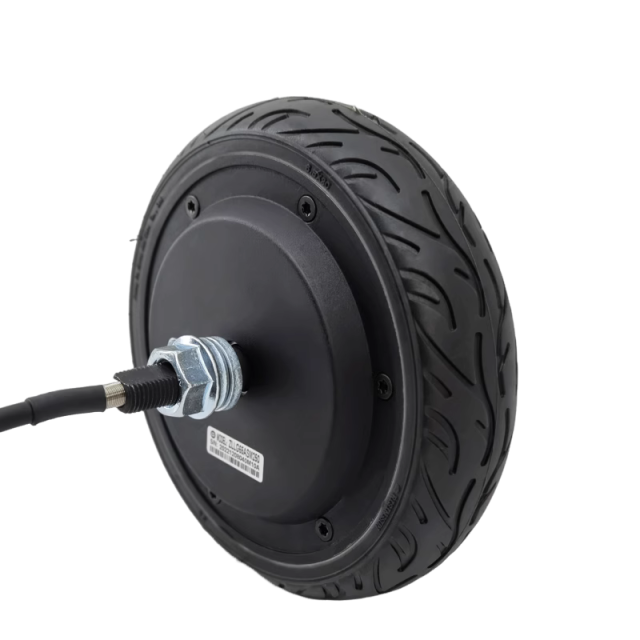

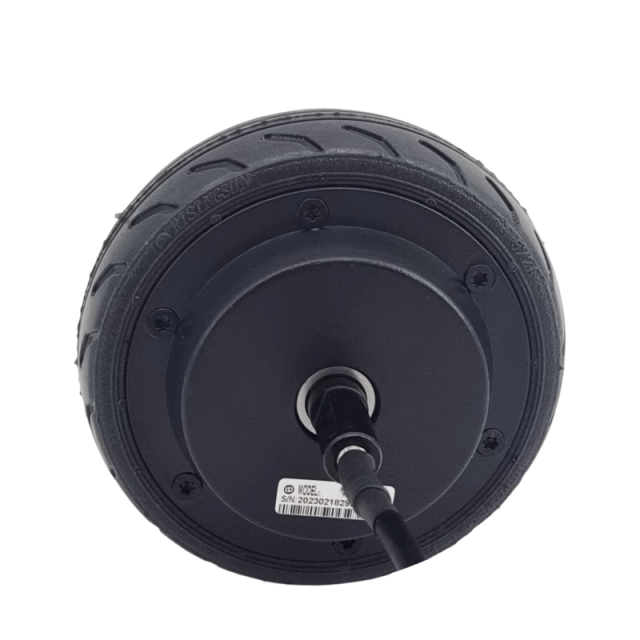

Hubwheel - Hubwheel Motor

Hubwheel Motor

Hubwheel

Size

5/6.5/8 inch
Payload Capacity

60/120/150/200 kg
Torque

3-20 Nm
Specific

Robot Industry Specific

consult

Compact Integration

All-in-one design with stator, encoder, shaft, and tire for space-saving installations

Quick Power Response

Direct-drive structure enables fast torque output for agile robot performance

Cost-effective Solution

Simplified mechanical design reduces manufacturing and maintenance costs

Easy Installation

Plug-and-play architecture shortens assembly time and simplifies deployment

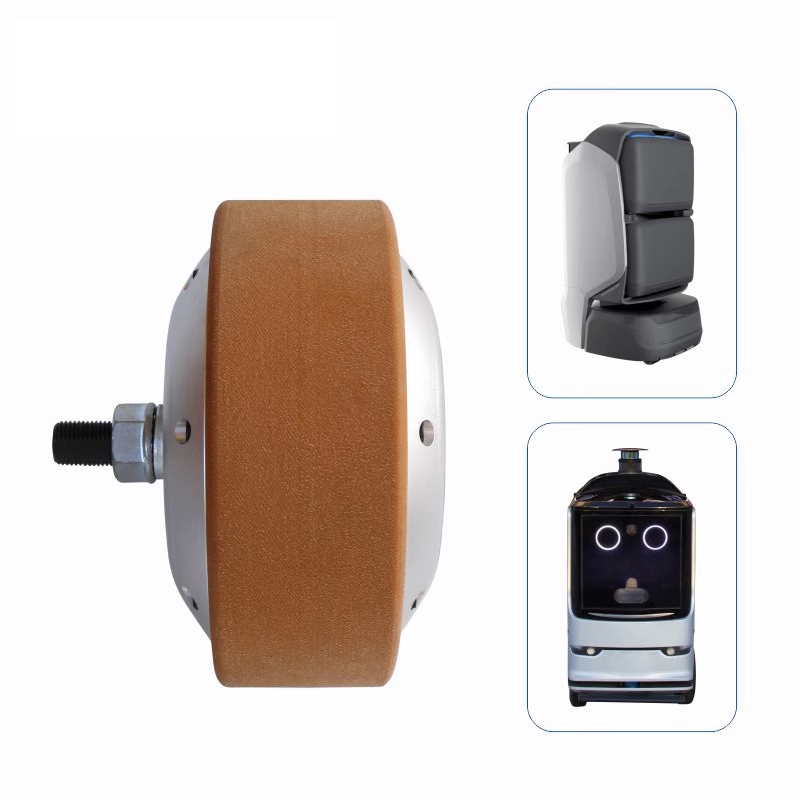

Versatile Application

Ideal for delivery, cleaning, disinfection, inspection, and sorting robots

Wide Use Scenarios

Perfect for service robots in restaurants, hospitals, offices, and factories

	Size	Axis	Voltage	Rated Speed	Rated Torque	Rated Output Power	Encoder Model	Load
WHM80250-4096-S	8 inch	single	24v	160 RPM	6 N.m	350W	EN8015	150 kg
WHM80250-4096-D	8 inch	dual	24v	160 RPM	6 N.m	350W	EN8015D	150 kg
WHM65ASM500-S	6.5 inch	single	48v	260 RPM	10 N.m	500W	EN8015	120 kg
WHM65ASM500-D	6.5 inch	dual	48v	260 RPM	10 N.m	500W	EN8015D	120 kg
WHM65ASM250-S	6.5 inch	single	24v	200 RPM	5.5 N.m	250W	EN8015	120 kg
WHM65ASM250-D	6.5 inch	dual	24v	200 RPM	5.5 N.m	250W	EN8015D	120 kg
WHM80ASM800-S	8 inch	single	48v	150 RPM	20 N.m	800W	EN8015	200 kg
WHM80ASM800-D	8 inch	dual	48v	150 RPM	20 N.m	800W	EN8015D	200 kg
WHM65ASM500A-S	6.5 inch	single	48v	260 RPM	10 N.m	500W	EN8015	200 kg
WHM65ASM500A-D	6.5 inch	dual	48v	260 RPM	10 N.m	500W	EN8015D	200 kg
WHM55ASM150-S	5 inch	single	24v	270 RPM	3 N.m	150W	EN8015	60 kg
WHM55ASM150-D	5 inch	dual	24v	270 RPM	3 N.m	150W	EN8015D	60 kg

Leave Messages

Discover the future of AGV technology with ATOMBOTIX
