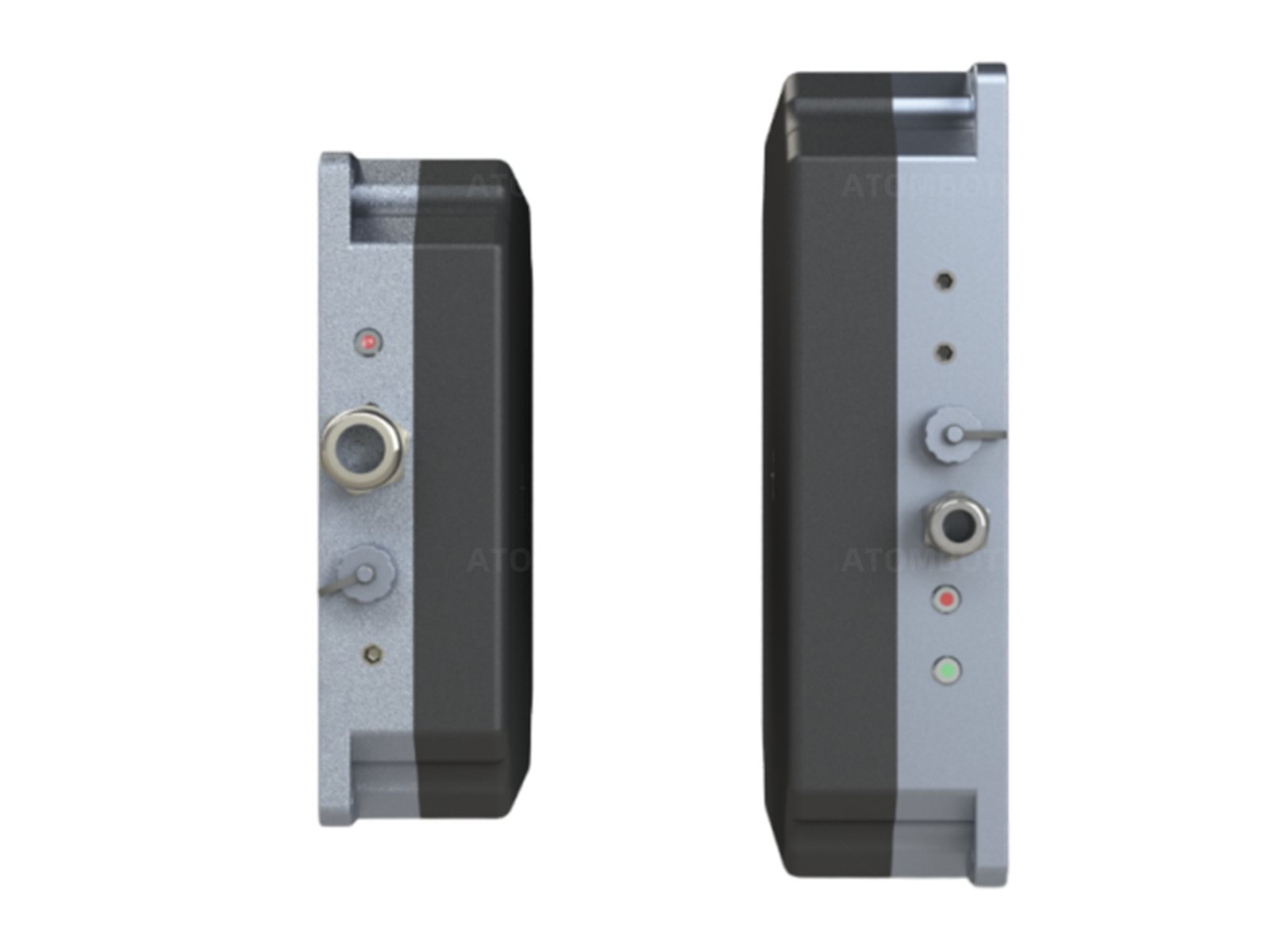

Wireless Charging 24V

A high-performance, efficient wireless charging solution perfect for high-power devices in demanding environments.

Power

3000W, 90-246 VAC input, 40-60 VDC output
Offset Gap

Vertical 40-80mm, horizontal offset 50mm (X), 10mm (Y)
Safety

BMS Protection
BMS Communication

RS485, CAN

consult datasheet

High Power Output

3000W rated power for rapid and efficient charging

Efficient Charging

>87% max transmission efficiency for fast power transfer

Sturdy & Protective Structure

IP65, IP65 & IP54-rated emitter, receiver & power supply box

Intelligent Charging Management

Constant-current to constant-voltage mode for optimized performance

Safe & Reliable

Contactless charging eliminates electric shock and leakage hazards

Offset Tolerance

40-80mm vertical, X-axis 50mm & Y-axis 10mm horizontal offset

Model	AB-WLC1500-24V50A	AB-WLC3000-24V100A
Electrical Parameters
Rated Power	1500W	3000W
Pre-stage Power Supply Voltage Input	110-264 VAC	110–264 VAC
Rated Output Voltage Range	20-30 VDC	21-30 VDC
Rated Output Current Range	50 A ± 1 A	100 A ± 1 A
Max. Transmission Efficiency	87%	85%
Essential Parameters
Vertical Working Distance	40–50mm	0–80 mm
Max. Horizontal Offset Distance	X - axis: 20 mm; Y - axis: 10 mm	X - axis: 50 mm; Y - axis: 10 mm
Charging Management	Constant - current & constant - voltage	Constant - current & constant - voltage
Over-temperature Protection	75±2℃	75±2℃
Output Over-current Protection	≥ 55 A	≥ 104 A
Output Over-voltage Protection	≥ 31 VDC	≥ 31 VDC
Communication	RS485, CAN	RS485,CAN
Alarm and Charging Status Indication	Indicator light alarm	Indicator light alarm
RF Data Communication Frequency	2.4 GHz	2.4 GHz
Cooling Method	Natural cooling	Natural cooling
Dimensions

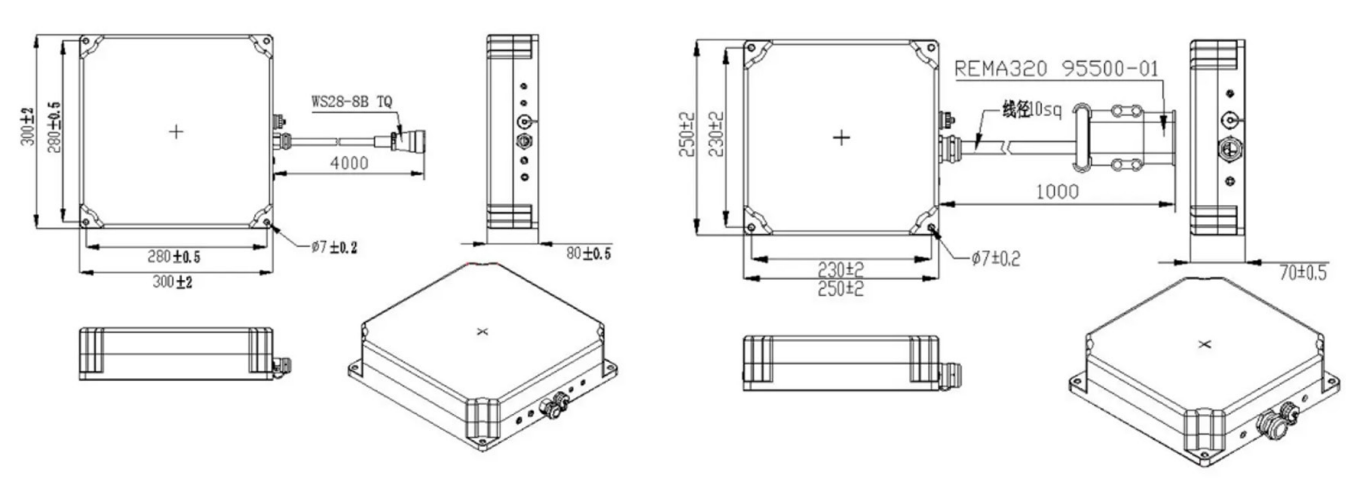

Transmitter Size	(300 ± 2) mm × (300 ± 2) mm × (80 ± 0.5) mm	(300 ± 2) mm × (300 ± 2) mm × (80 ± 0.5) mm
Receiver Size	(250 ± 2) mm × (250 ± 2) mm × (70 ± 0.5) mm	(250 ± 2) mm × (250 ± 2) mm × (70 ± 0.5) mm (300 ± 2) mm × (300 ± 2) mm × (116 ± 1) mm(Including radiator)
Front-stage Power Supply Size	(520 ± 1) mm × (300 ± 1) mm × (123 ± 2) mm	(520 ± 1) mm × (300 ± 1) mm × (123 ± 2) mm
Transmitter Weight	10 kg	9 kg
Receiver Weight	10 kg	14.5 kg18.2 kg (Including radiator)
Front-stage Power Supply Weight	13.5 kg	13.5 kg
Environment Parameters
Working Temperature	-20°C–50℃	-40°C–60°C
Working Humidity	≤85%	≤85%
Storage Temperature	-25°C–70℃	-20°C–70°C
Protection LeveL
Emitter Protection Level	IP65	IP65
Receiver Protection Level	IP65	IP67
Power Supply Box Protection Level	IP54	IP54
