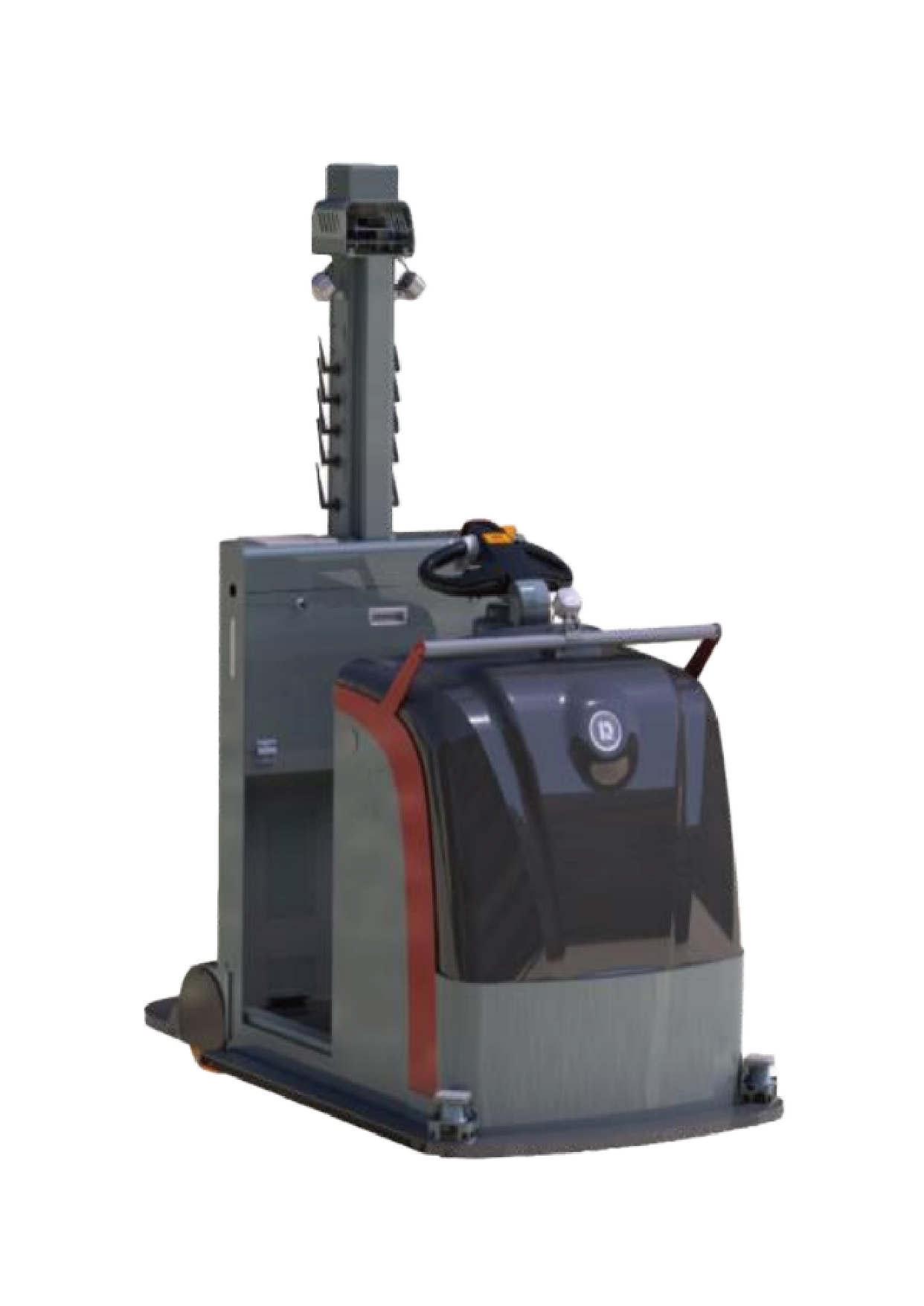

Heavy Duty Tugger 3.0T
Heavy Duty Tugger 3.0T
Rated Load Capacity
Max Speed
Battery
BMS Communication
.png)
.png)

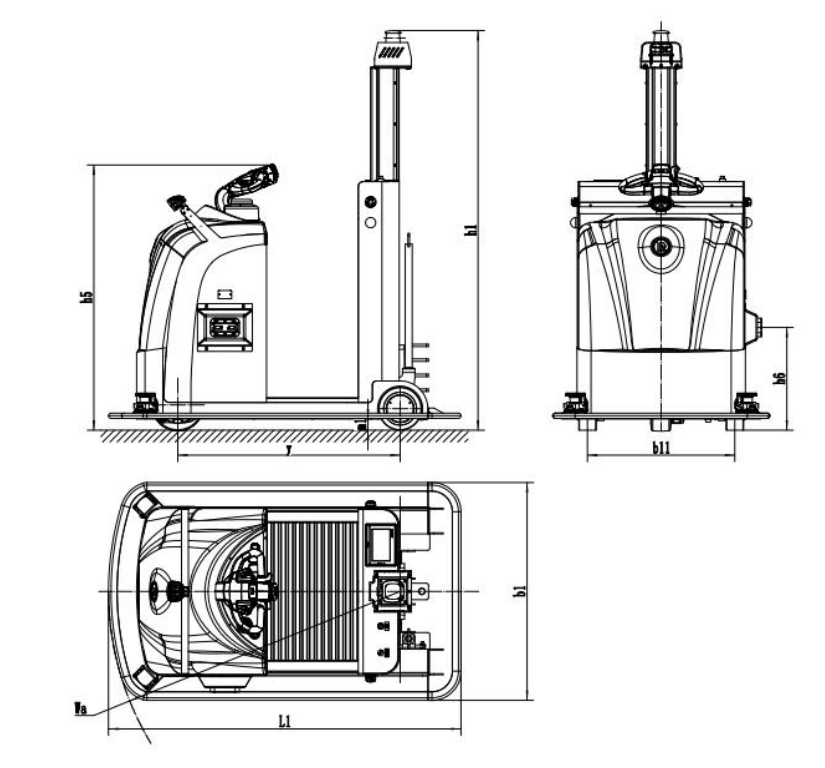

| Model | AB-FLB-TG30 |
| Feature | |
| Power Type | Electric |
| Driving Style | AGV |
| Rated Load Capacity (Q) | 3000 kg |
| Load Center Distance (C) | |
| Front Suspension Distance (x) | |
| Wheelbase (y) | 1085 mm |
| Weight | |
| Self Weight (Including Battery) | / |
| Bridge Load At Full Load, Driving Side/Load-Bearing Side | / |
| Bridge Load When Unloaded, Driving Side/Load-Bearing Side | / |
| Wheel | |
| Tire Type | Polyurethane |
| Tire Size, Drive Wheel | Φ230 × 75 mm |
| Tire Size, Load-Bearing Wheels | Φ210 × 85 mm |
| Tire Size, Balance Wheel | |
| Number of Wheels, Drive Side (X=Drive Wheels)/Load-Bearing Side | 1x-2 |
| Track Width, Drive Side (b10) | |
| Track Width, Load-Bearing Side (b11) | 719 mm |
| Basic Dimensions | |
| Total Height (h1) | 1966.5 mm |
| Total Width | 1060 mm |
| Total Length (L1) | 1720 mm |
| Vehicle Length (Excluding Fork) (L2) | / |
| Free Lifting Height (h2) | / |
| Lifting Height (h3) | / |
| Door Frame Deployment Height (h4) | / |
| Fork Surface Min. Height(When the Fork is at its Lowest) (h5) | 1289 mm |
| Charging Pad Height (h6) | 500 mm |
| Fork Size (l/e/s) | / |
| Fork Outer Width (b5) | / |
| Ground Clearance of The Vehicle Body (m1) | 55 mm |
| Min. Turning Radius (Wa) | 1422 mm |
| Min. Right Angle Stacking Channel Width | / |
| Right Angle Stacking Aisle Width, Pallet 800×1200 (1200 Placed Along The Fork) | / |
| Right Angle Stacking Aisle Width, Pallet 1000×1000 (1200 Placed Along The Fork) | / |
| Right Angle Stacking Channel Width, Pallet 1000 × 1200 (1200 Placed Along The Fork) | / |
| Max. Lifting Height | / |
| Performances | |
| Driving Speed, Full Load/Empty Load | 5/6 km/h |
| Rated Traction Force | 600 |
| Maximum Traction Force | 2400 |
| Climbing Performance, Full Load/Empty Load | 5%/8% |
| Driving Brake Mode | Electromagnetic braking |
| Motor | |
| Drive Motor Power | 2.2 kw |
| Power of Lifting Motor | / |
| Steering Motor Power | 0.4 kw |
| Battery Type | lithium iron phosphate |
| Drive Motor Type | 24 V asynchronous AC motor |
| Steering Motor Type | 48 V DC Servo motor |
| Lifting Mechanism | / |
| Communication Protocol | CAN |
| Battery | |
| Weight of Battery | 58 kg |
| Battery Type | lithium iron phosphate |
| Battery Voltage/Rated Capacity | 24/210 V/AH |
