Wireless Charging

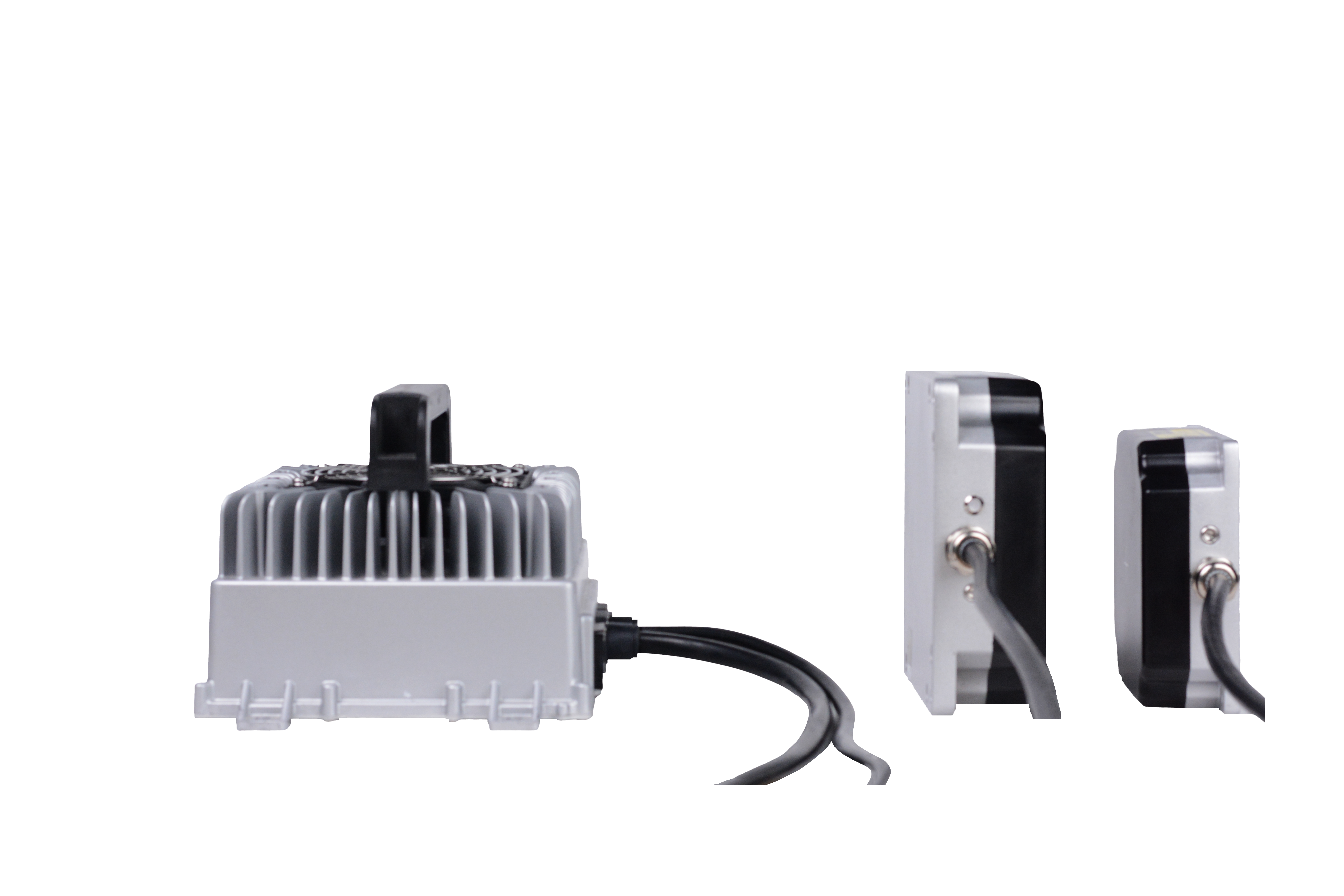

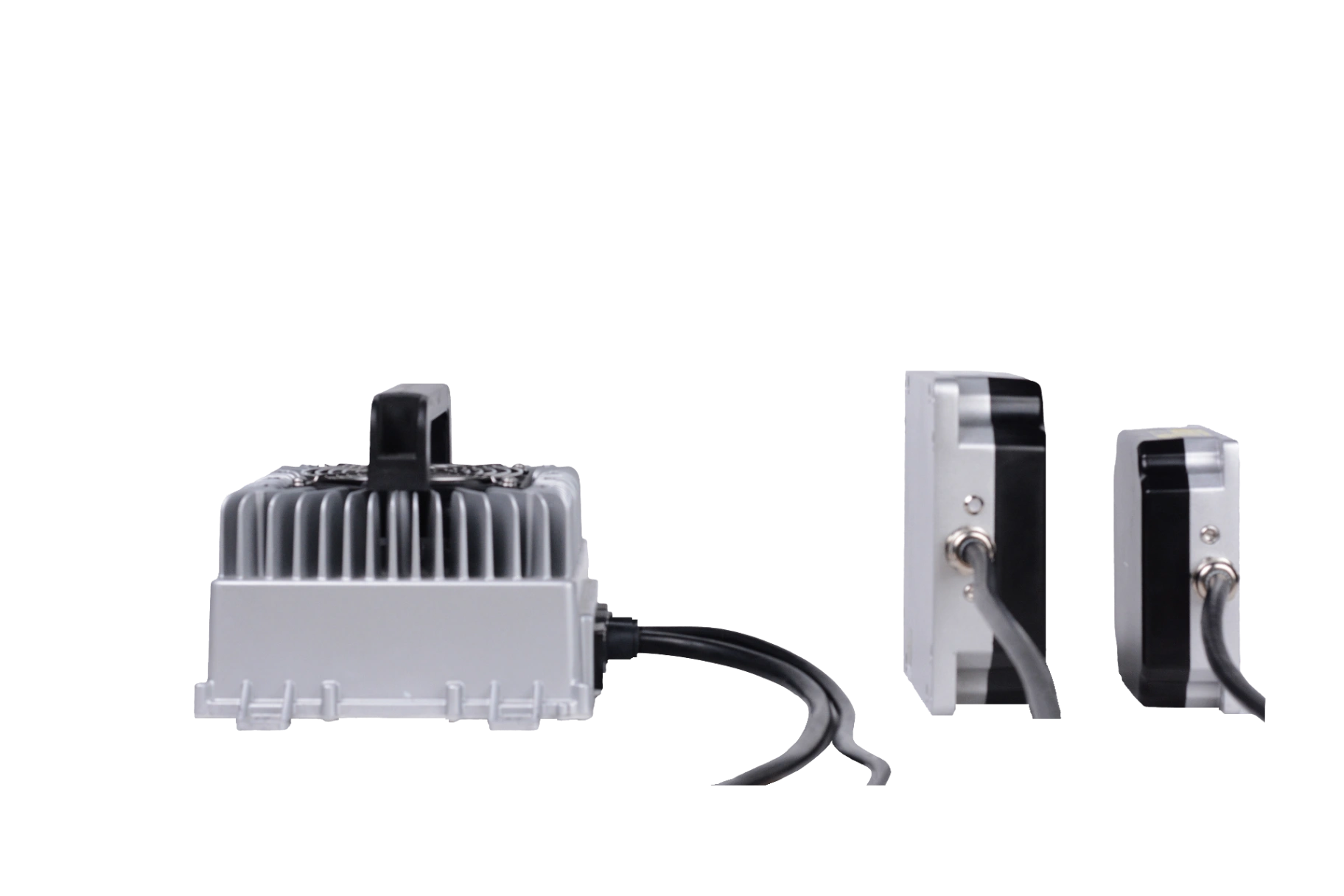

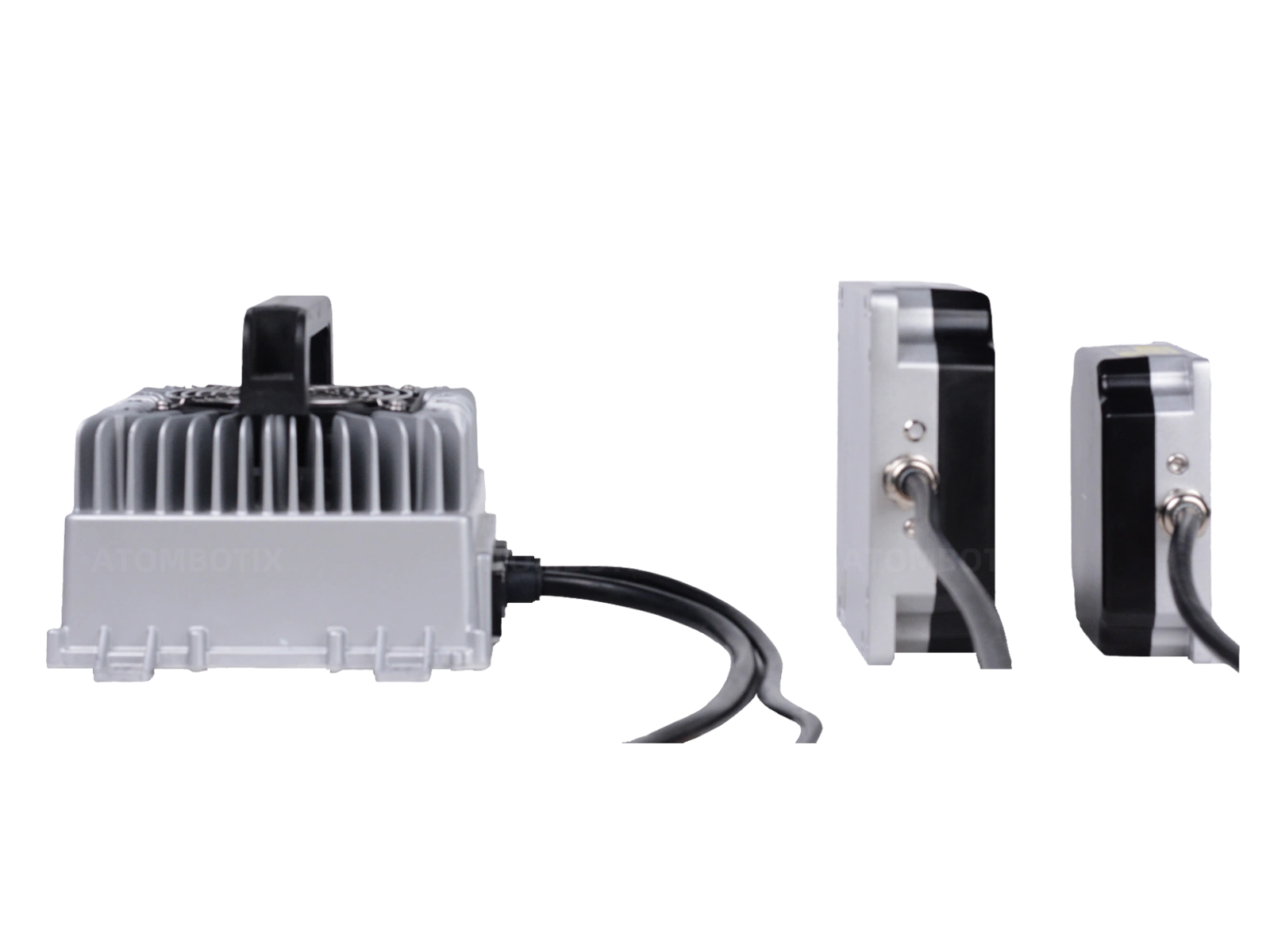

Wireless Charging 48V
Wireless Charging 48V
Power
Alignment
Safety
BMS Communication
.png)
.png)
.png)
| Model | AB-WLC-1200-48V20A | AB-WLC-3000-48V50A |
| Electrical Parameters | ||
| Rated Power | 1200 W | 3000 W |
| Front-end power supply voltage Input | 90–264 VAC | 110–264 VAC |
| Rated Output Voltage | 40–60 VDC | 40–60 VDC |
| Rated Output Current | 0–20 A | 50 ± 1 A |
| Maximum Transmission Efficiency | ≥85% | ≥87% |
| Essential Parameters | ||
| Vertical Working Distance | 10–40 mm | 40–80 mm |
| Maximum Horizontal Offset Distance | X - axis: 20 mm; Y - axis: 10 mm | X - axis: 50 mm; Y - axis: 10 mm |
| Charging Management | Constant Current & Constant Voltage Charging Management | Constant Current & Constant Voltage Charging Management |
| Over-temperature Protection | Support | 75 ± 2°C |
| Over-current Protection | Support | 55 A (preset current 50 A) |
| Over-voltage Protection | Support | 61 VDC (preset voltage 60 V) |
| Receiver Communication Interface | RS485, CAN | CAN, 485 |
| Transmitter Communication Interface | RS485, CAN | CAN, 485 |
| Alarm and Charging Status Indication | Indicator light alarm | Indicator light alarm |
| RF Data Communication Frequency | 2.4 GHz | 2.4 GHz |
| Cooling Method | Natural cooling | Natural cooling |
| Dimensions | ||

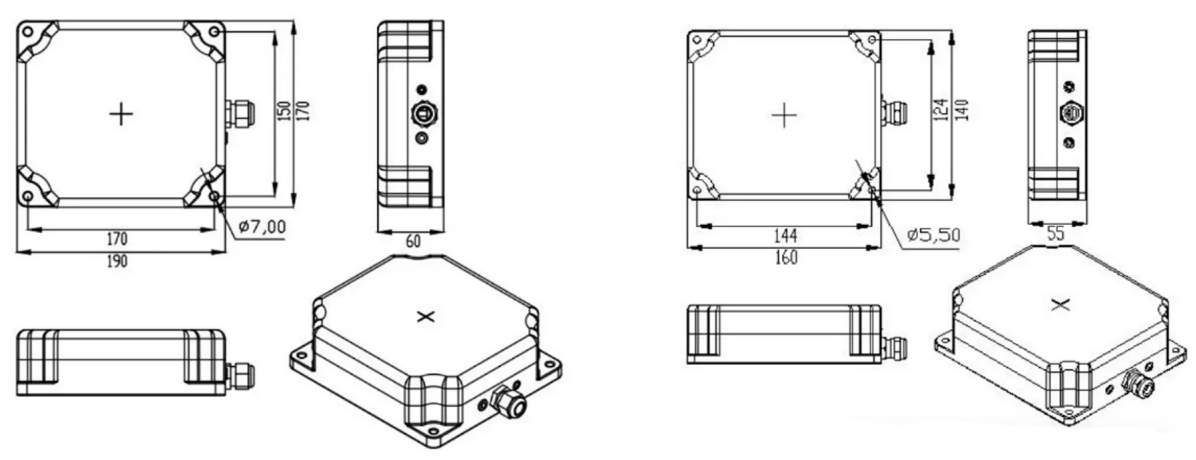

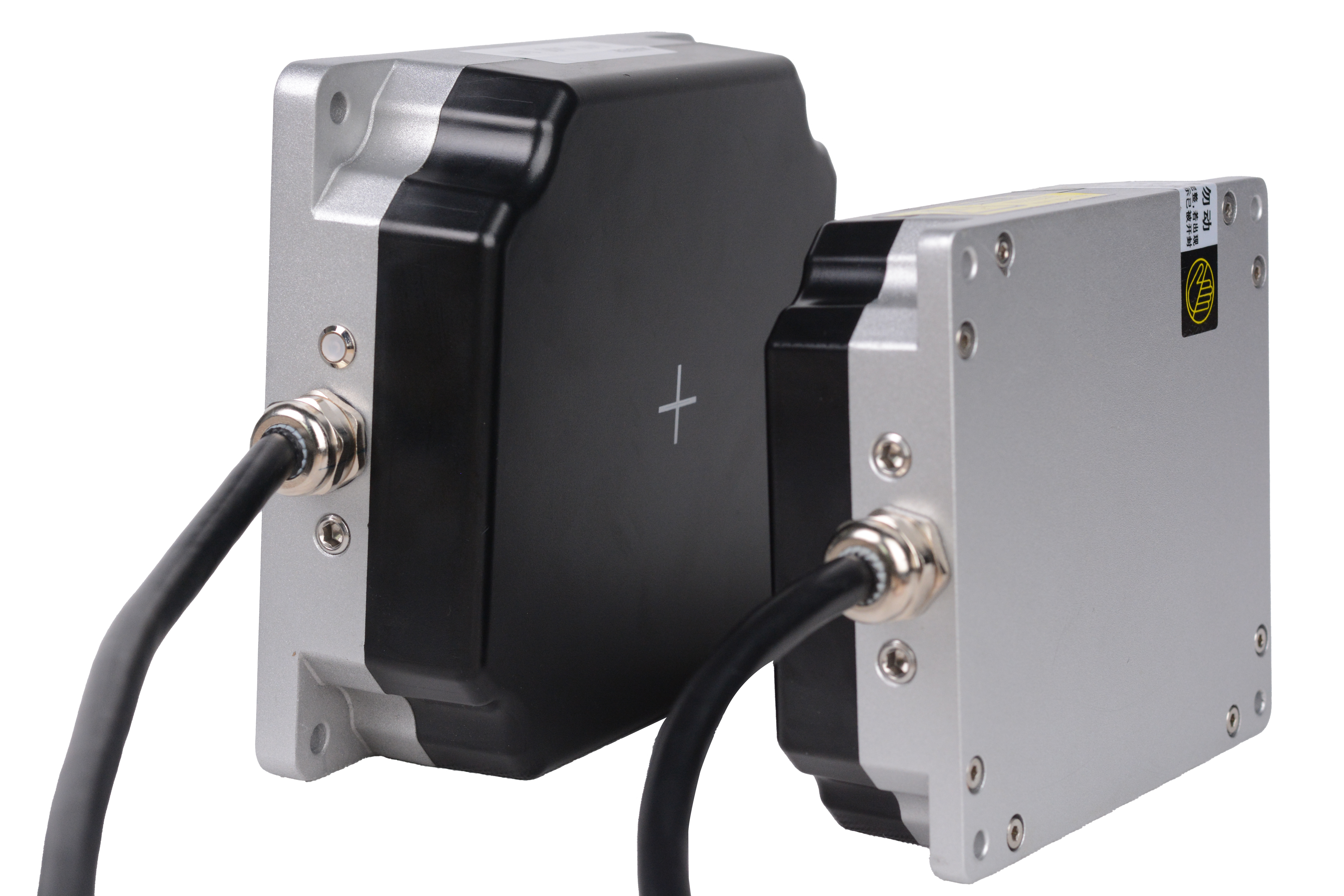

| Transmitter Size | 190 mm × 170 mm × 59 mm | (300 ± 2) mm × (300 ± 2) mm × (80 ± 0.5) mm |
| Receiver Size | 190 mm × 140 mm × 49 mm | (250 ± 2) mm × (250 ± 2) mm × (70 ± 0.5) mm |

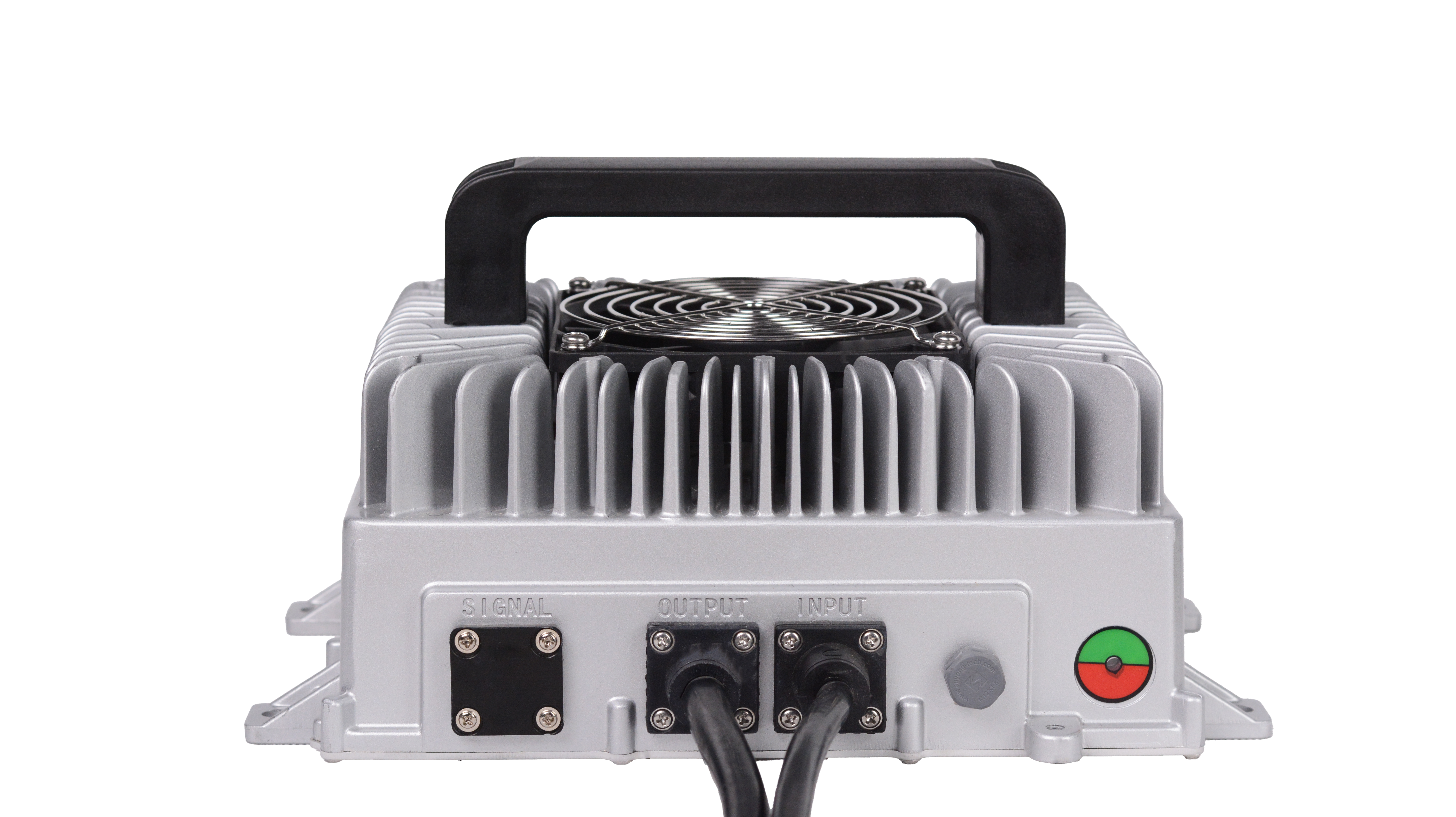

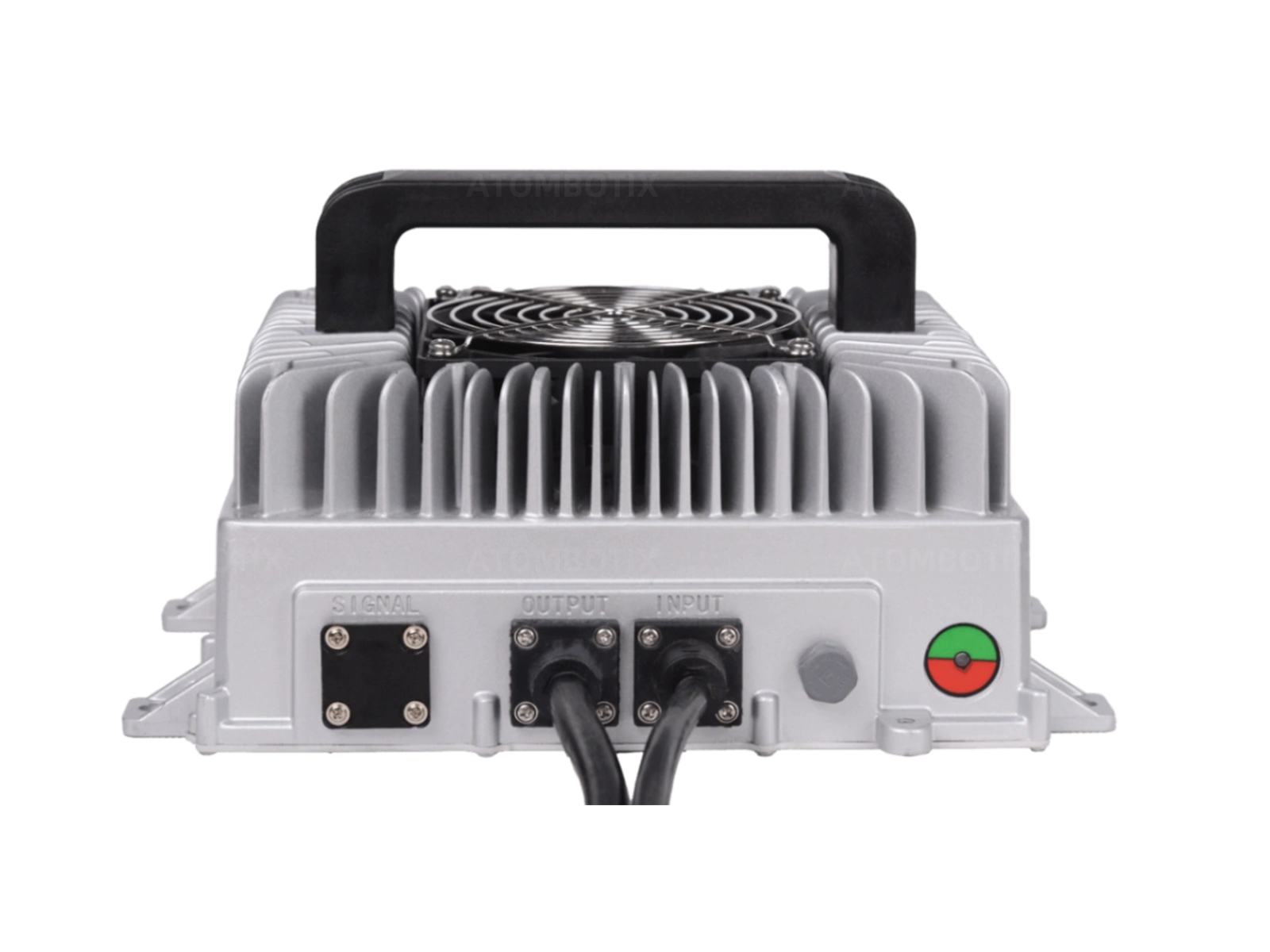

| Front-stage Power Supply Size | / | (520 ± 1) mm × (300 ± 1) mm × (123 ± 2) mm |
| Transmitter Weight | 3 kg | 10 ± 0.2 kg |
| Receiver Weight | 2.3 kg | 10 ± 0.2 kg |
| Front-stage Power Supply Weight | / | 13.5 ± 0.2 kg |
| Environment Parameters | ||
| Working Temperature Range | -40°C – 60°C | -40°C – 60°C |
| Working Humidity Range | 0 – 85% | 0 – 85% |
| Storage Temperature | -25°C – 85°C | -20°C – 70°C |
| Protection Level | ||
| Emitter Protection Level | IP67 (Encapsulation) | IP65 |
| Receiver Protection Level | IP67 (Encapsulation) | IP65 |
| Power Supply Box Protection Level | / | IP54 |
