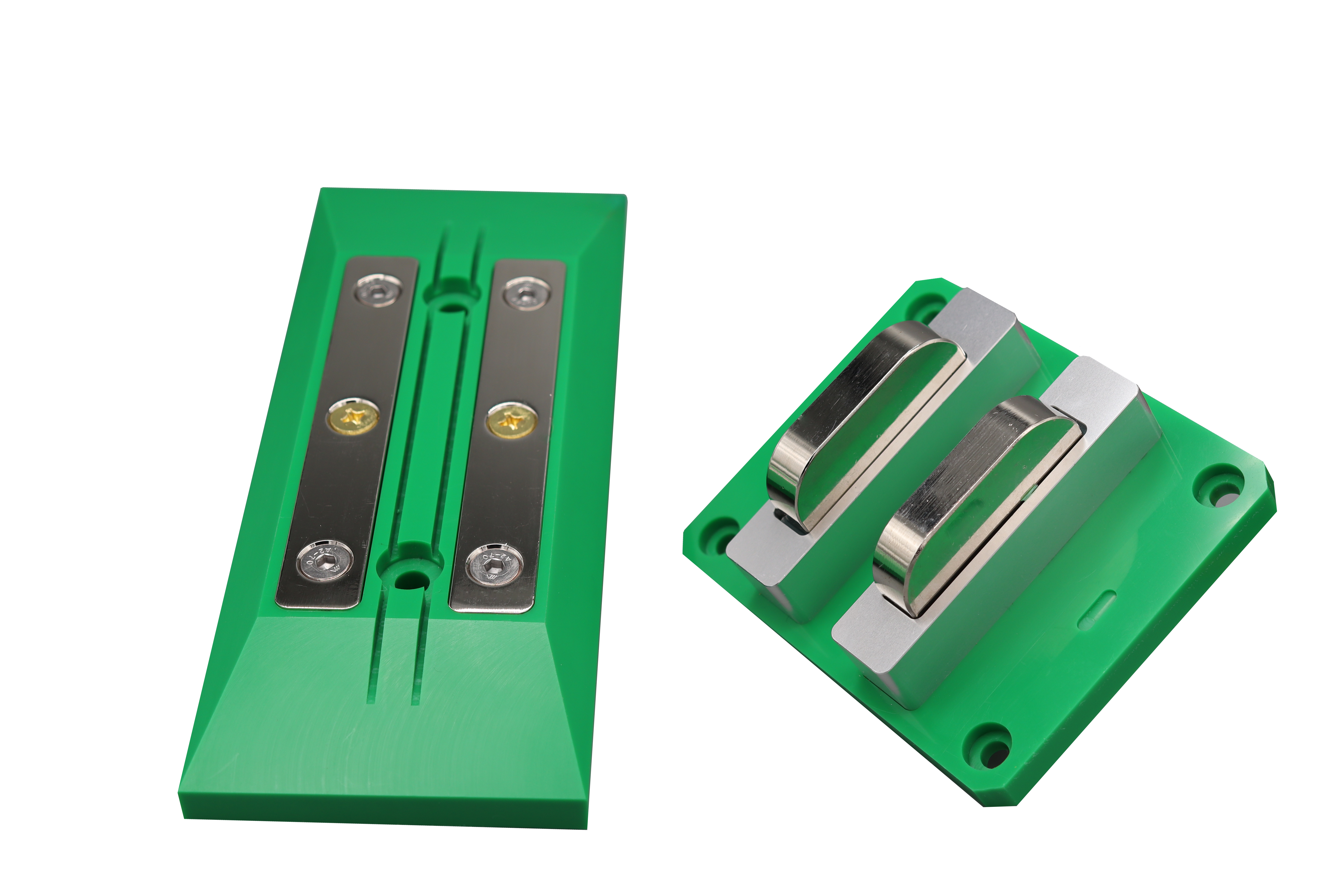

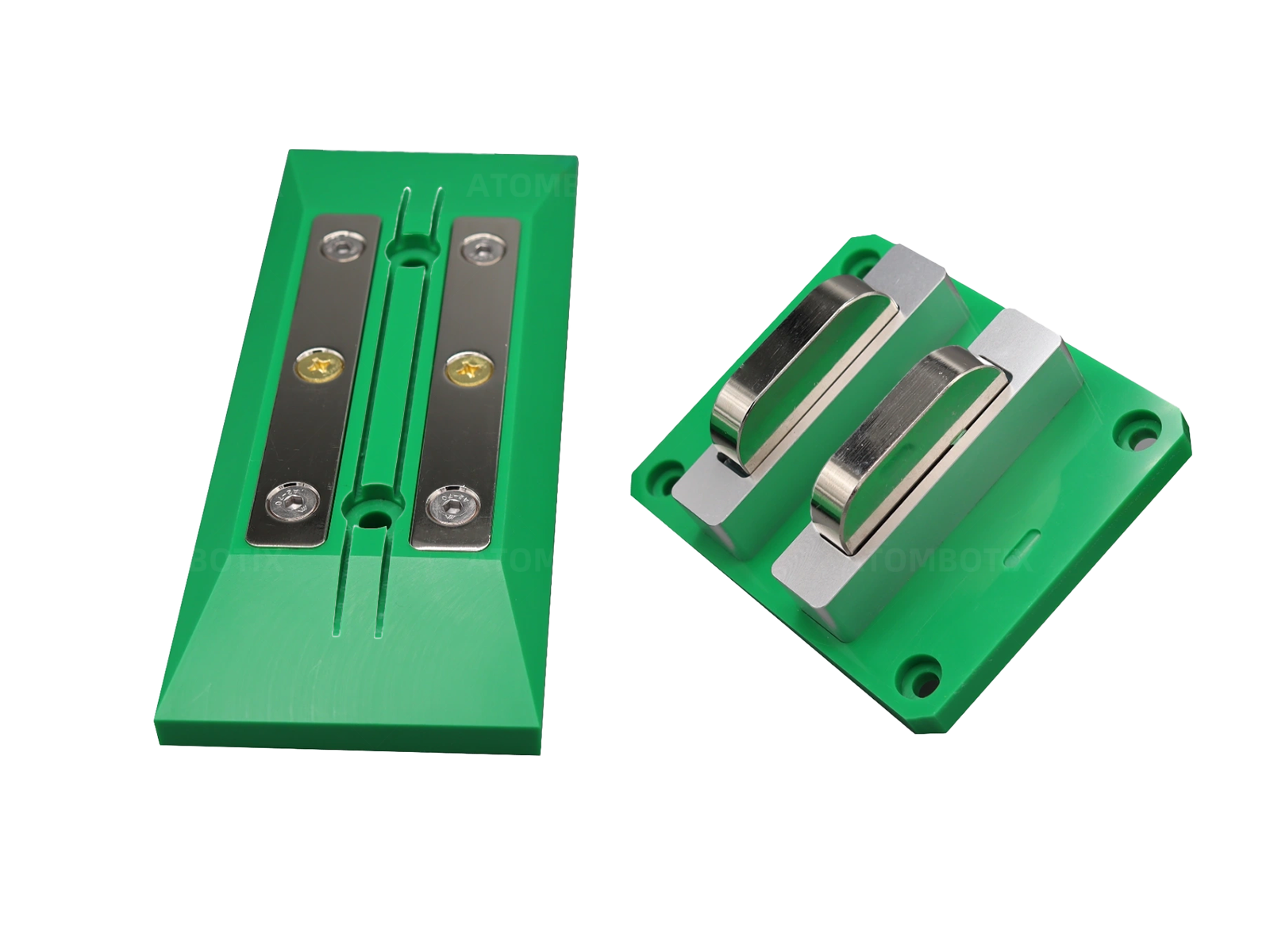

Brush Plate - Contact Charging

Contact Charging

Brush Plate

High Current Capacity

Supports 35A to 100A
Durable Construction

Copper-carbon alloy electrodes
Compact & Efficient Design

40% compression rate for reliable contact
Robust Operating

Up to 50,000 charge cycles

consult

Standard & Custom Options

Available in 20A, 50A, 100A and more, with customization to meet specific needs

Multi-Battery Compatibility

Supports lithium batteries for wide application

Reliable Charging Interface

Durable copper-carbon alloy electrodes ensure stable and efficient power transfer.

Robust Charging

Designed for integration with AGV forklift systems requiring continuous or automatic charging

Broad Industrial Use

Trusted across logistics and manufacturing sectors

Compact & Robust Design

Lightweight unit built for easy installation and long service life

Model	AB-BP20A	AB-BP50A	AB-BP100A
Electrical Parameters
Supported Current	35A	50A	100A
Supported Voltage	No Limitation
Essential Parameters
Material	Aluminum/copper/copper carbon/nickel plating
Electrode	2P
Plate Compression	40%	40%	40%
Plate Dimensions (LWH)	170×65×15 mm	220×90×20 mm	220×90×20 mm
Block Dimensions (LWH)	100×100×36 mm	120×100×12 mm	120×100×12 mm
Net Weight	1.0 kg	1.5 kg	1.5 kg
Duration	30000-50000 times
Environmental Parameters
Working Environment	Indoor
Working Temperature	-20℃ – 45℃
Storage Temperature	-25℃ – 60℃, Humidity 5 – 95%
Atmospheric Pressure	86kPa – 106 kPa
