2400W 24V/48V Stationary Charger
2400W 24V/48V Stationary Charger
Wide Range
Capacity
High Efficiency
Communication
.png)
| Model | AB-CC2-24V100A | AB-CC2-48V50A |
| Electrical Parameters | ||
| Rated Input Voltage | 220VAC±15% | |
| Input Voltage Range | Single-phase three-wire system | |
| Input Current Range | <16A | <16A |
| Rated Output Power | 2.4 kW | 2.4 kW |
| Rated Output Current | 100A | 50A |
| Output Voltage Range | 16VDC-32VDC | 30VDC-65VDC |
| Adjustable Current Limiting Range | 0-100A | 0-50A |
| Peak Noise | ≤1% | |
| Voltage Regulation Accuracy | ≤±0.5% | |
| Current Sharing | ≤±5% | |
| Efficiency | ≥92% | |
| Frequency | 50Hz- 60Hz | |
| Power Factor (PF) | ≥0.99 | |
| Current Distortion (HD1) | ≤5% | |
| Essential Parameters | ||
| BMS Communication Mode | CAN | |
| BMS Connection Mode | CAN-WIFI, CAN wired connection for brush board | |
| Dispatching Communication Mode | Modbus TCP, Modbus AP | |
| Dispatching Connection Mode | Modbus-WIFI, Ethernet | |
| Network Frequency Band | 2.4G, 5.8G | |
| AGV Automatic Charging Positioning Mode | Reflected infrared rays or opposed infrared rays | |
| Starting Mode | Infrared ray, Modbus, CAN-WIFI | |
| AGV Brush Board Parameters | Optional | |
| Charging Mode | Charger telescoping, AGV active contact | |
| Heat Dissipation Mode | Forced air cooling | |
| The Telescopic Stroke of the Charger | 200mm | |
| The Positioning Distance of the AGV | 165mm – 325mm | |
AGV Brushing Center Height From the Ground | 90mm – 400mm | |

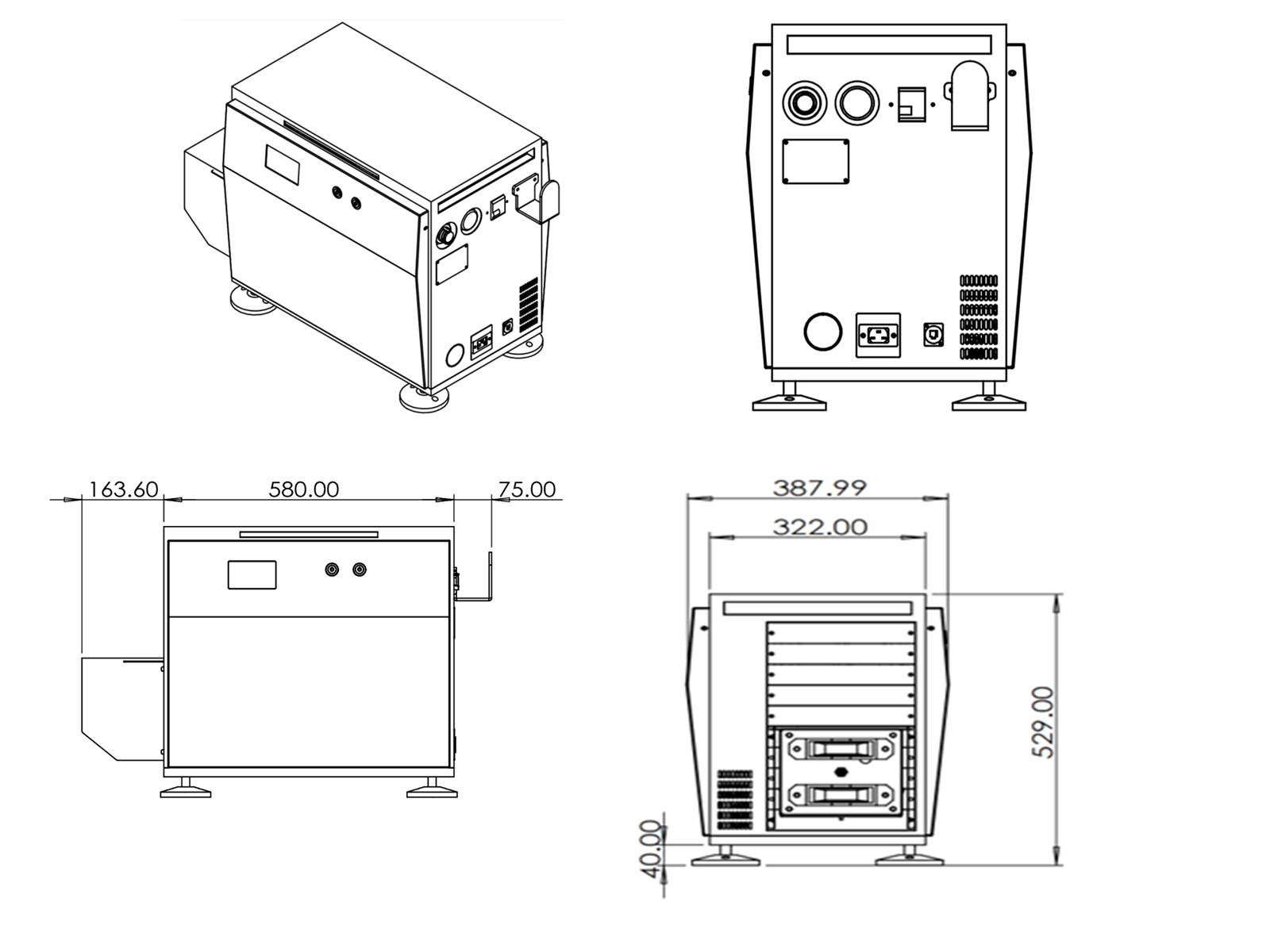

| Overall Dimensions (all-in-one machine) | 540(H)×580(W)×390(D) mm | |
| Net Weight | 35Kg | |
| IP Ratings | IP20 | |
| Protection | Short-circuit protection, overcurrent protection, overvoltage protection, reverse connection protection, and current backflow protection. | |
| Environmental Parameters | ||
| Working Environment | Indoor | |
| Working Temperature | -20℃ to 65℃, outputs at a derated level at 45℃ to 65℃, and shuts down for protection above 65℃. | |
| Storage Temperature | -40℃- 75℃ | |
| Humidity | 0 - 95% | |
