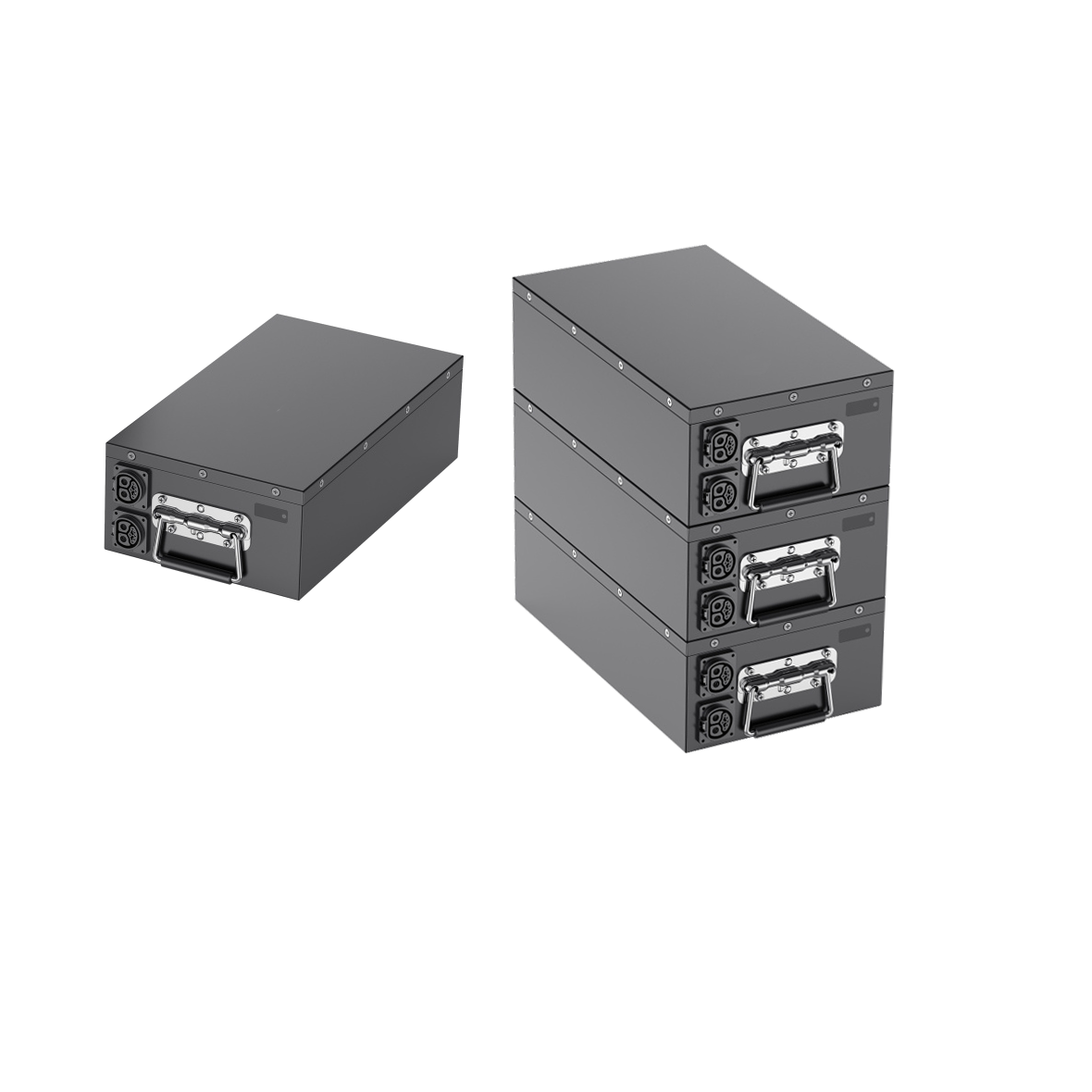

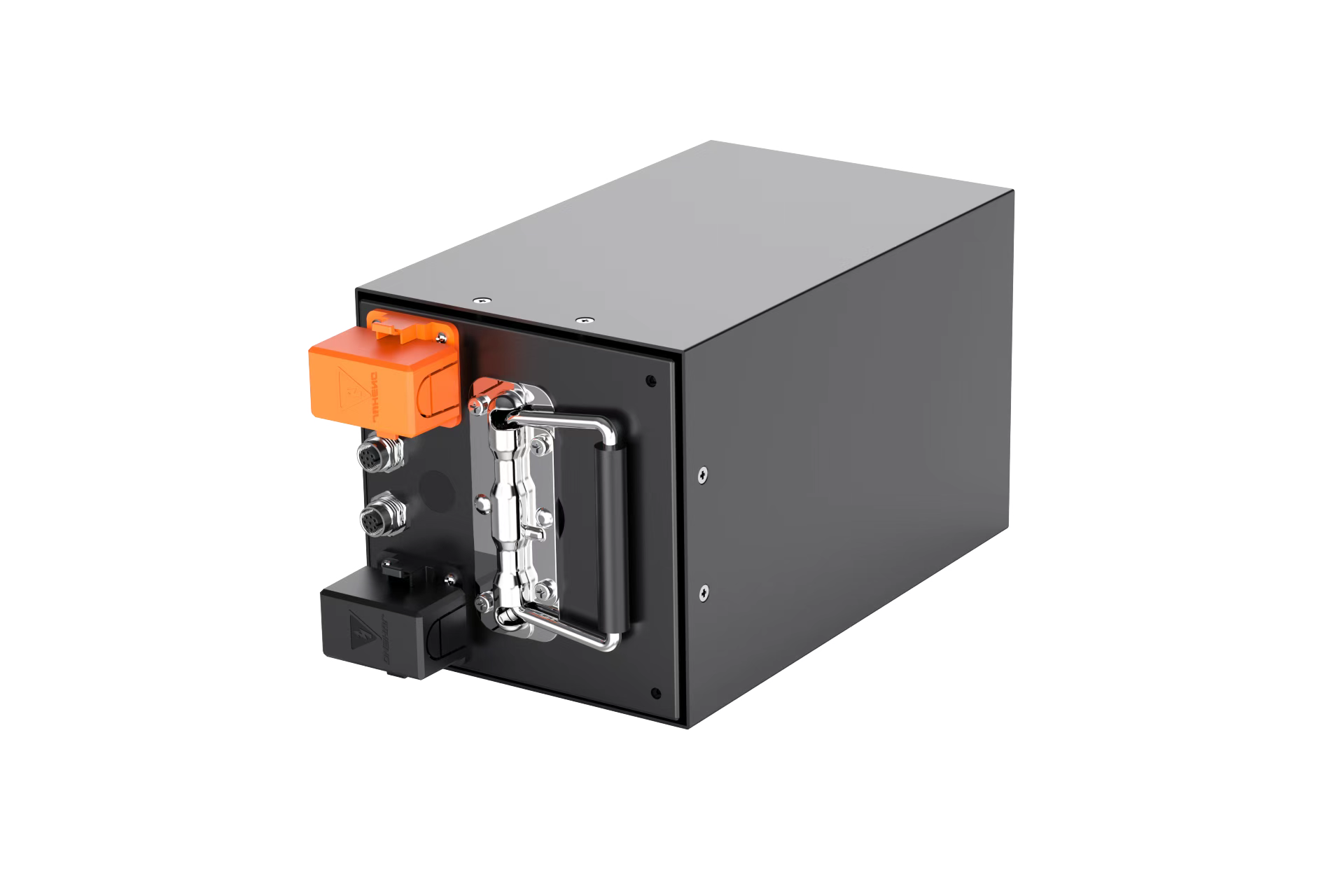

Modular Battery 48V23AH
Modular Battery 48V23AH
Capacity
Scalability
Safety
Certifications
.png)
| Model | AB-BT-LFP-48V-23AH-MOD |
| Electrical Parameters | |
| Full Charging(FC) Voltage | 58.4 V |
| Charging Cut-off Current | 1.15 A |
| Standard Charging Current | 11.5 A |
| Max. Charging Current | 23 A |
| Discharge Cut-off Voltage (FD) | 40 ± 2 V |
| Standard Discharging Current | 11.5 A |
| Max. Continuous Discharge Current | 20 A |
| Max. Discharge Current (<5s) | 30 A |
| Essential Parameters | |
| Nominal Voltage | 48 V |
| Nominal Capacity | 23 Ah |
| Rated Capacity | ≥90% |
| Cycle Life | 2000 cycles ≥80% |
| Cell Material | Lithium Iron Phosphate(LFP) |
| Max Units in Parallel Connection | 5 |
| Max Units in Serial Connection | 2 |
| Certification | UL/CE/FCC/EN13849/UN 38.3 |
| Communication | CANopen |
| Environmental Parameters | |
| Charge Temperature | 0–45℃ |
| Discharge Temperature | -20 – 60℃ |
| Storage Temperature | -20 – 25℃ |
| Humidity Range | 60 ± 25% RH |
| Physical Parameters | |

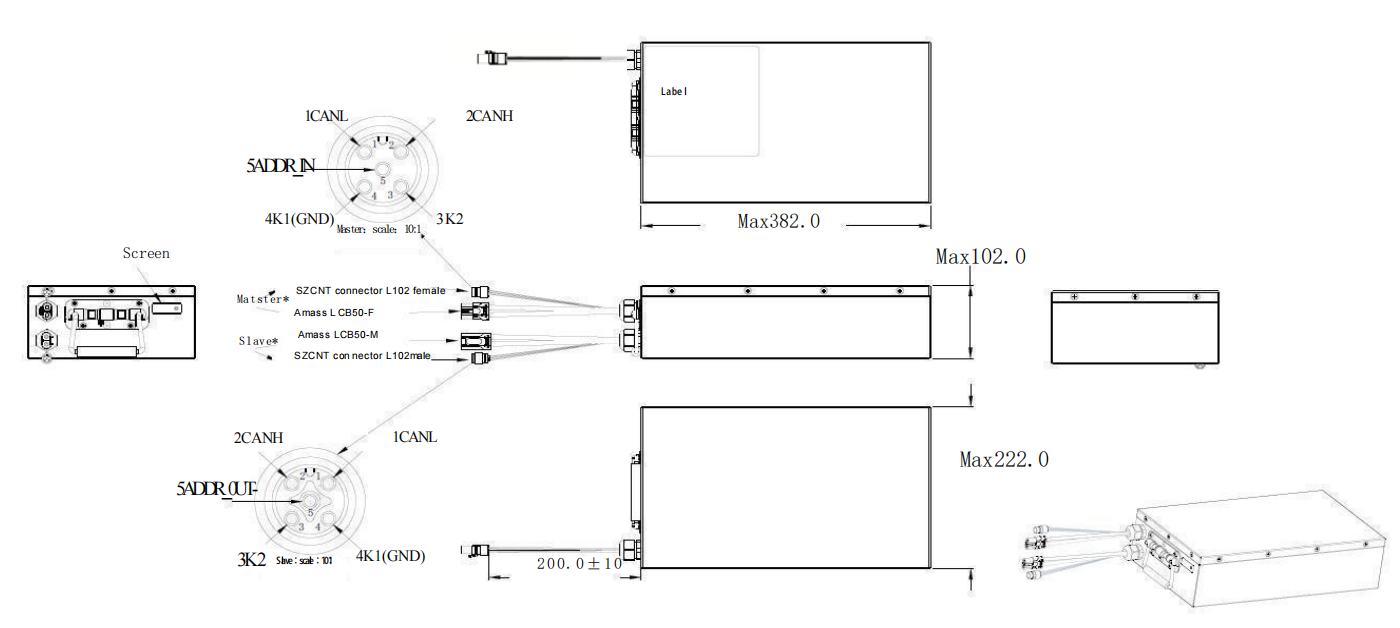

| Dimensions | 382 × 222 × 102 mm |
| Net Weight | 13.5 kg |
