Lithium-Ion Battery
Modular Battery 24V45AH
Modular Battery 24V45AH
Capacity
Scalability
Safety
Certifications
.png)
| Model | AB-BT-LFP-24V-45AH-MOD |
| Electrical Parameters | |
| Full Charging(FC) Voltage | 29.2 V |
| Charging Cut-off Current | 2.25 A |
| Standard Charging Current | 22.5 A |
| Max Charging Current | 40 A |
| Discharge cut-off voltage (FD) | 20.8 ± 0.8 V |
| Standard Discharging Current | 22.5 A |
| Max. Continuous Discharge Current | 40 A |
| Max. Discharge Current (<5s) | 50 A |
| Essential Parameters | |
| Nominal Voltage | 24 V |
| Nominal Capacity | 45 Ah |
| Rated Capacity | ≥90% |
| Cycle Life | 2000 cycles ≥70% |
| Cell material | Lithium Iron Phosphate |
| Max Units in parallel connection | 5 |
| Max Units in Serial connection | 2 |
| Certification | UL/CE/FCC/EN13849/UN38.3 |
| Communication | CANopen |
| Environmental Parameters | |
| Charge Temperature | 0–45℃ |
| Discharge Temperature | -20–60℃ |
| Storage Temperature | -20–25℃ |
| Humidity | 60 ± 25% RH |
| Physical Parameters | |

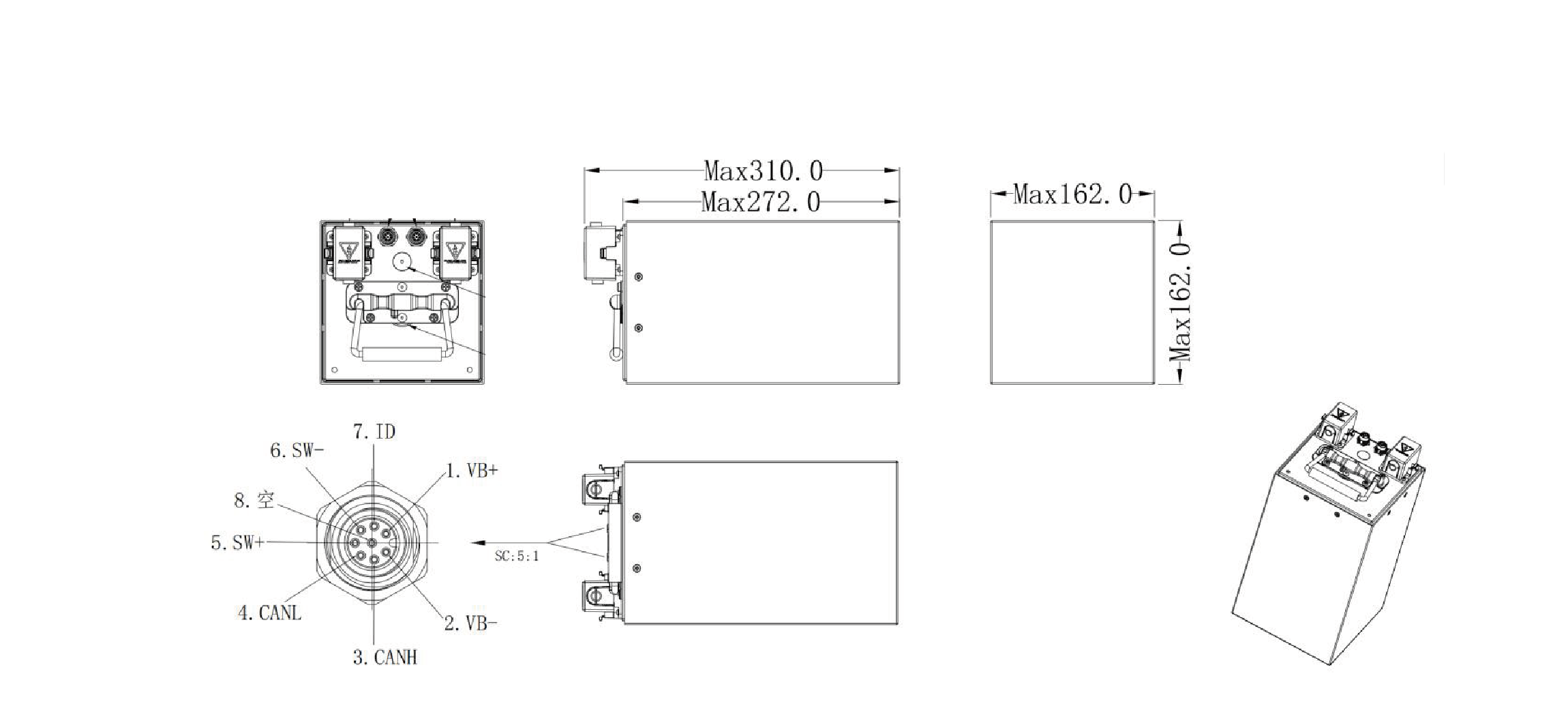

| Dimensions | 310 × 272 × 162 mm |
| Net Weight | 13.3 kg |
