Object Finder-HD - Camera

Camera

Object Finder-HD

A high-performance 3D camera perfect for robotics, automation, and industrial applications requiring high accuracy and reliability.

Frame Rate: Up to 24fps, 16fps @ 1280 x 960

24fps @ 640 x 480
Image Output

Depth, RGB, IR, point cloud images
Connectivity

M12 X-Code, 8-pin female connector, and Gigabit Ethernet
Durability

IP65 protection

consult datasheet

Advanced Design

Active stereo technology for accurate imaging

Excellent lllumination

1 xInfrared laser (λ= 940 nm)

Diverse Outputs

Depth, RGB, IR, and point cloudimages

Compact Design

Dimensions of 145 mm x35 mm x90mm and weight of 620 g

Variable Frame Rates

Multiple frame rate options available at different resolutions for both depth and RGB

Accurate Alignment

RGB-D alignment for precise data communication

Model	AB-CM-3D-OR-HD
Performance Parameters
Technical Principle	Active stereo
Illumination	1 x Infrared laser (λ = 940 nm)
Latency of Image Acquisition	126 ms
Depth Sensor Resolution and Frame Rate	16 fps @ 1280 x 960 24 fps @ 640 x 480 24 fps @ 320 x 240
RGB Sensor Resolution and Frame rate	6 fps @ 2560x1920 @ CSI BAYER12GBRG 4 fps @ 2560 x 1920 @ YUYV 7 fps @ 1920 x 1440 @ YUYV 16 fps @ 1280 x 960 @ YUYV 30 fps @ 640 x 480 @ YUYV
Essential Parameters
RGB-D Alignment	Support
Output Data	Depth, RGB, IR, point cloud images

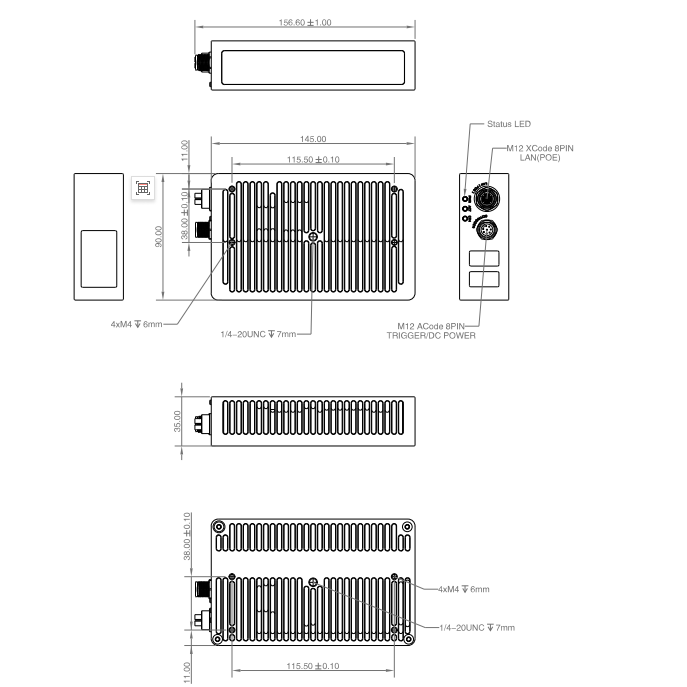

Dimensions	145 mm x 35 mm x 90 mm
Net Weight	620 g
Data Connector	8-pin female connector
Power & Trigger Connector	M12 A-Code See Power & Trigger Connector for its pinout
Data Transmission	Gigabit Ethernet
Hardware Trigger	2 trigger input/output； Input/Output 1: rising - edge trigger Input/Output 2: falling - edge trigger
Material	Aluminum alloy
IP Ratings	IP65
Thermal Dissipation	Passive
Electrical Parameters
Power Supply	DC 24V ± 10%
Rated Power	Idle mode: 5 W Continuous mode: 9 W
Environmental Parameters
Working Temperature	- 10 °C – 50 °C
Storage Temperature	- 20 °C – 55 °C
