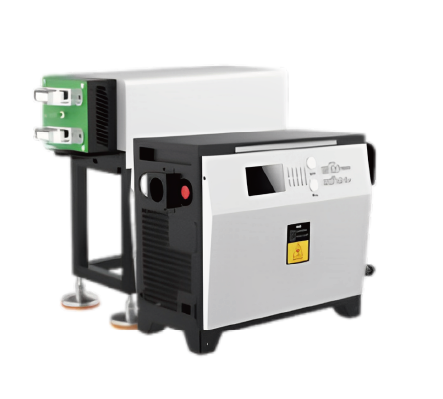

SCC-Split-type Compact Charger - Contact Charging

Model	AB-SCC-4800-24	AB-SCC-4800-48	AB-SCC-2400-24	AB-SCC-2400-48
Rated Input Voltage	220VAC±15%
Input Voltage Range	Single-phase three-wire system
Input Current Range	<30 A		<16 A
Rated Output Power	4.8 kW		2.4kW	2.4kW
Rated Output Current	200 A	100 A	100 A	50 A
Output Voltage Range	16 -32 VDC	32 -60 VDC	16 - 32 VDC	32 - 64 VDC
Adjustable Range of Current Limiting	0-200 A	0-100 A	0 - 100 A	0 - 50 A
Peak Noise	≤1%
Voltage Regulation Accuracy	≤±0.5%
Stable Current	≤±5%
Efficiency	≥92%
Frequency	50 - 60 Hz
Power Factor (PF)	≥0.99
Current Distortion (HD1)	≤5%
Essential Parameters
BMS Communication Mode	CAN
BMS Connection Method	CAN-WIFI, CAN Wired Board Flashing Connection
Scheduling Communication Mode	Modbus TCP, Modbus AP
Scheduling Connection Mode	Modbus-WIFI, Ethernet
Network Frequency Band	2.4G, 5.8G
Startup Mode	Infrared, Modbus, CAN-WIFI
AGV Brush Plate Parameters	Customer provides drawings and Aipula standards
Charger Structure Mode	Split unit
Charging Method	Charger telescoping, AGV active contact
Supports Manual REMA Charging	Optional (REMA wiring definition diagram needs to be provided)
Heat Dissipation Method	Forced air cooling
Telescopic Stroke of the Charger	200 mm
Positioning Distance of AGV	165 - 325 mm
AGV Brush Plate Center Ground Clearance Height	150 mm - Unlimited

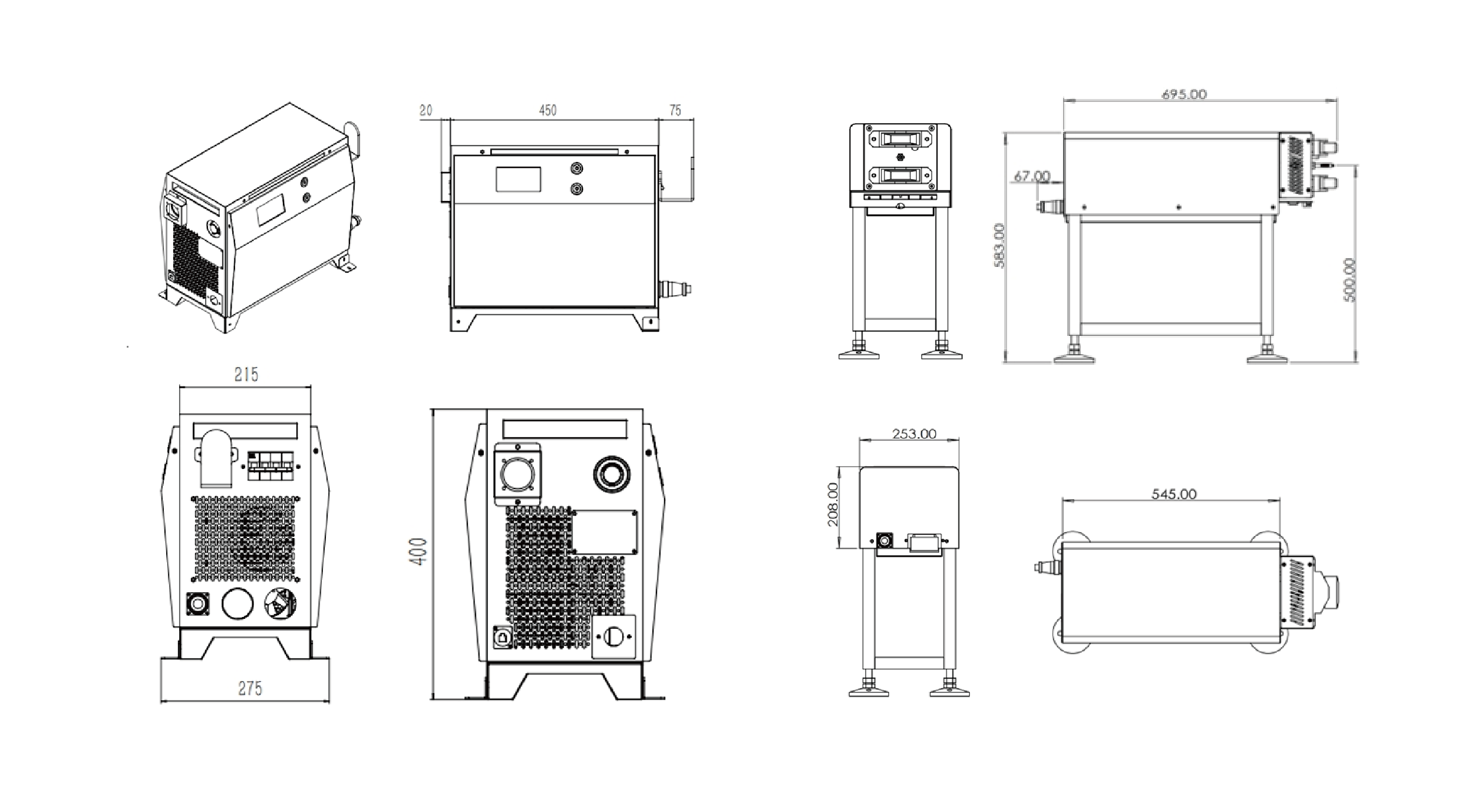

External Dimensions (Control Chassis)	351(H)×215(W)×447(D) mm		264(H)×229(W)×400(D) mm
Net Weight (Control Chassis)	23 kg		13 kg
External Dimensions (Telescopic Chassis)	580(H)×253(W)×695(D) mm
Net Weight (Telescopic Chassis)	18 kg
IP Ratings	IP20
Protection	Short circuit, overcurrent, overvoltage, reverse connection, and current backflow protection
Environmental Parameters
Working Temperature	-20℃ - 45℃ for normal operation; 45℃ - 65℃ for derated output; above 65℃ for shutdown protection
Storage Temperature	-40℃- 75℃
Relative Humidity	0 - 95%

Contact Charging

The system ensures precise charging with voltage-stabilizing and constant-current features, and it records detailed charging data and fault logs for easy maintenance.

220VAC±15%

2.4kW battery charger

≥ 92

CAN

Flexible Charging

Supports blind charging

High Efficiency

92% power efficiency

Comprehensive Protection

Overvoltage, undervoltage, overcurreent, over-temperature protection.

Wide Compatibility

Broad input voltage range of 220VAC±15%.

Customizable Options

48V output with 100A and 200A, or 3phase 380V input.

Optimized for AGV & AMR

Specially designed for AGV and AMR applications
